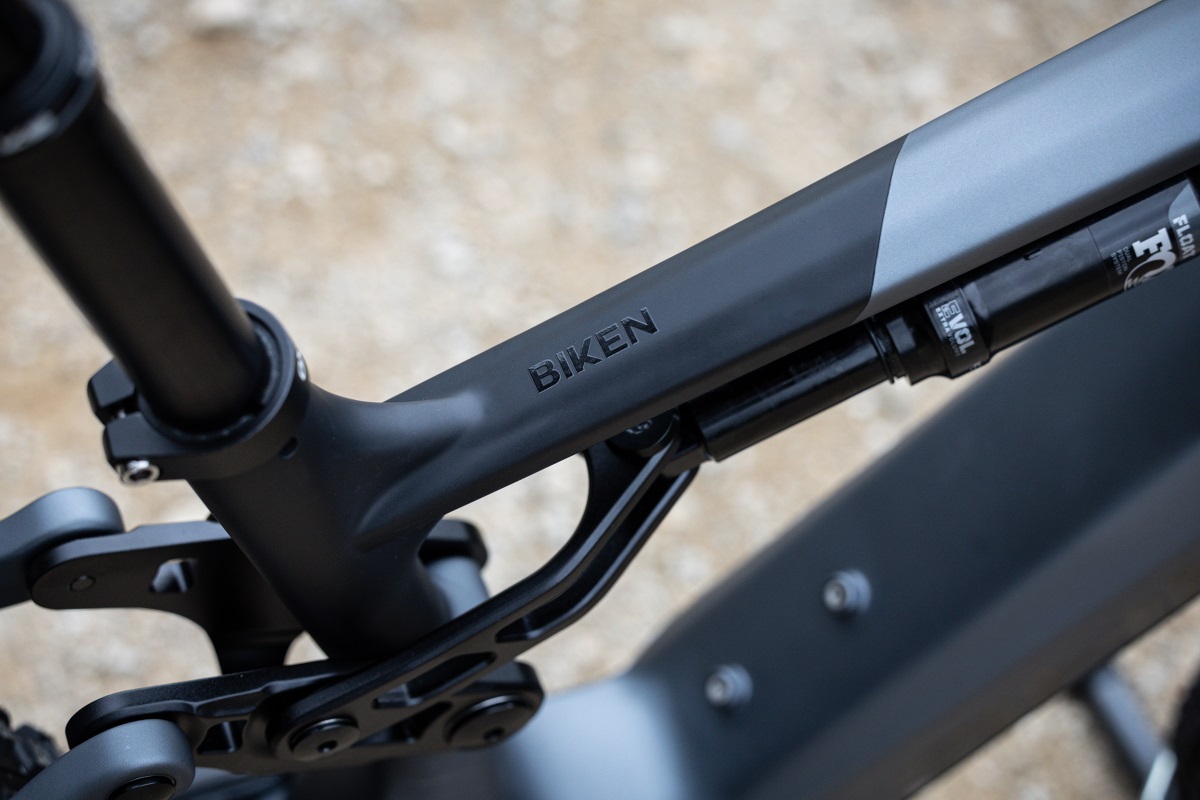

| Frame: | Full carbon, travel 150mm
|
| Fork: | FOX36 2023 150 Grip Rhythm 15QRX110, 51mm offset
|

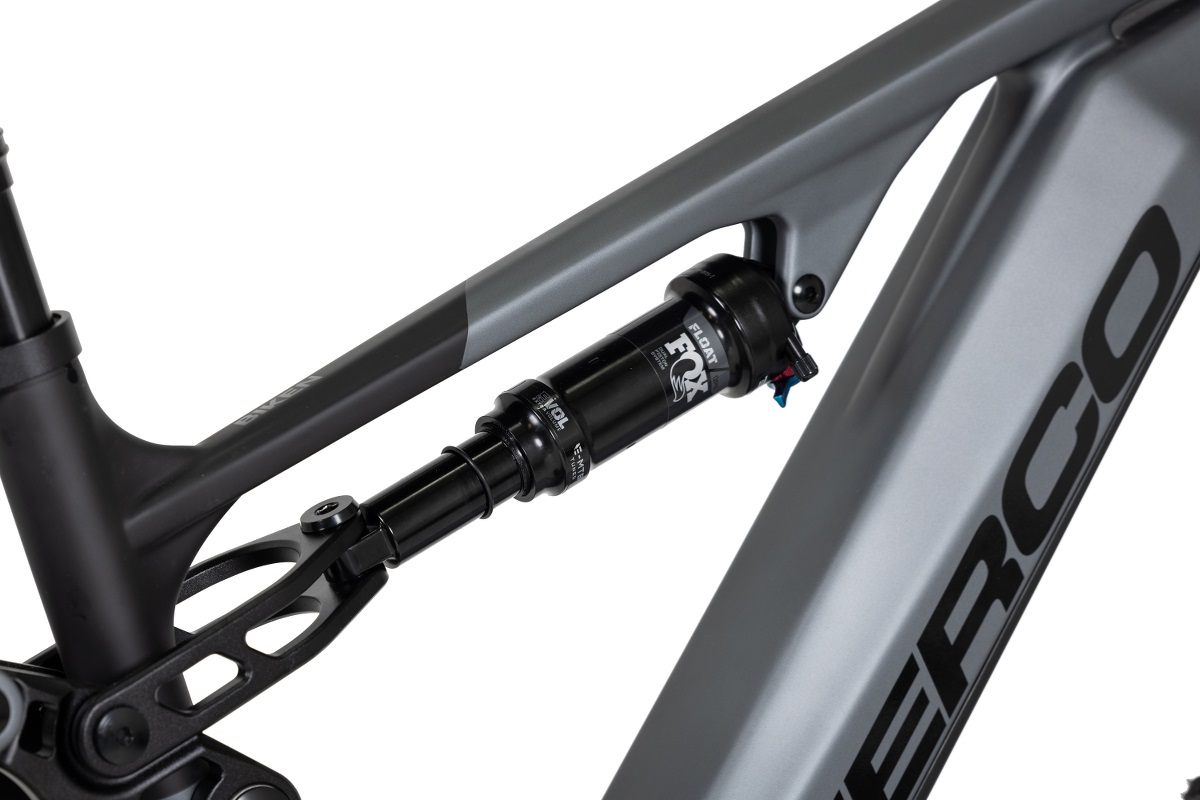

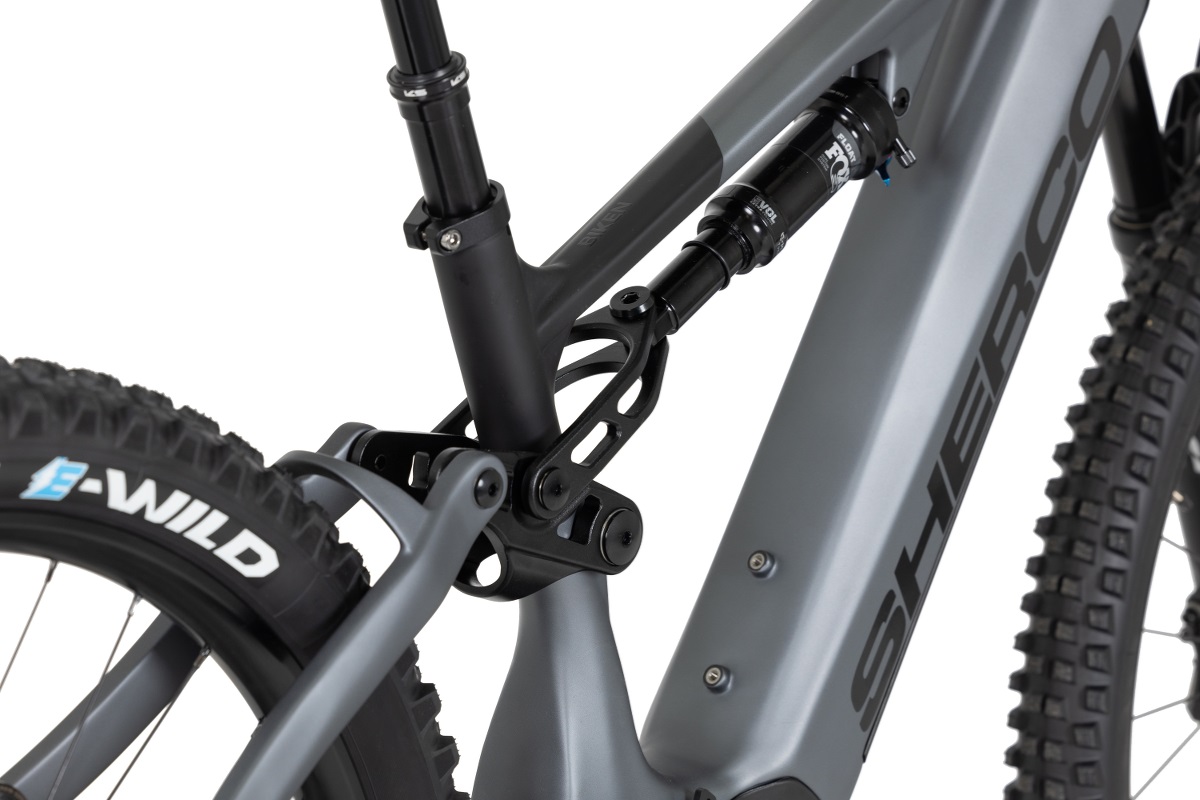

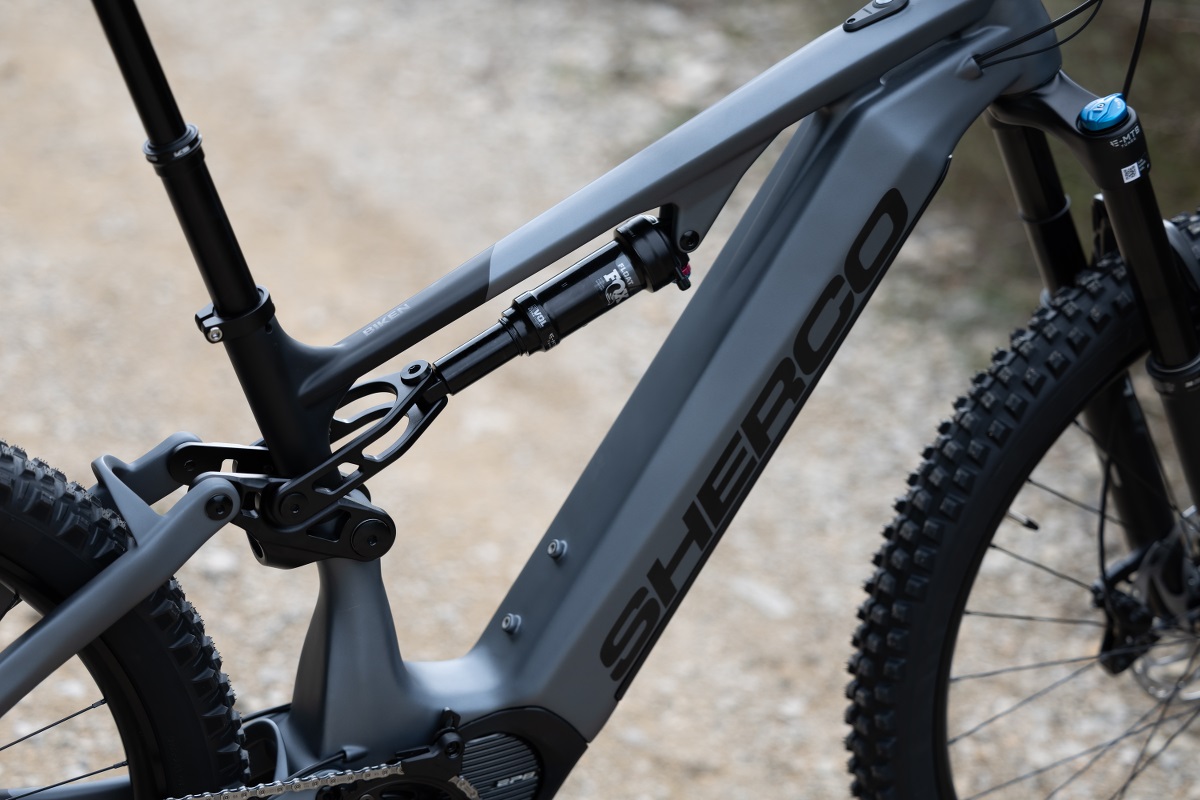

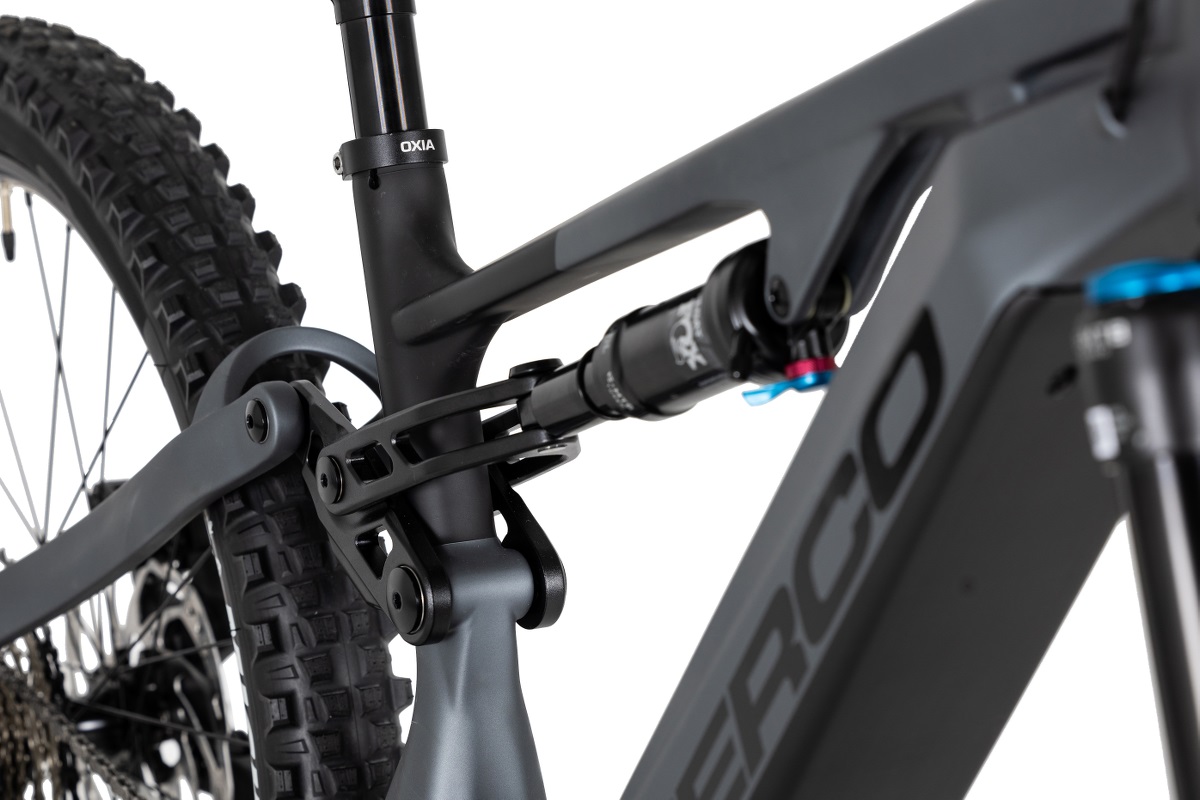

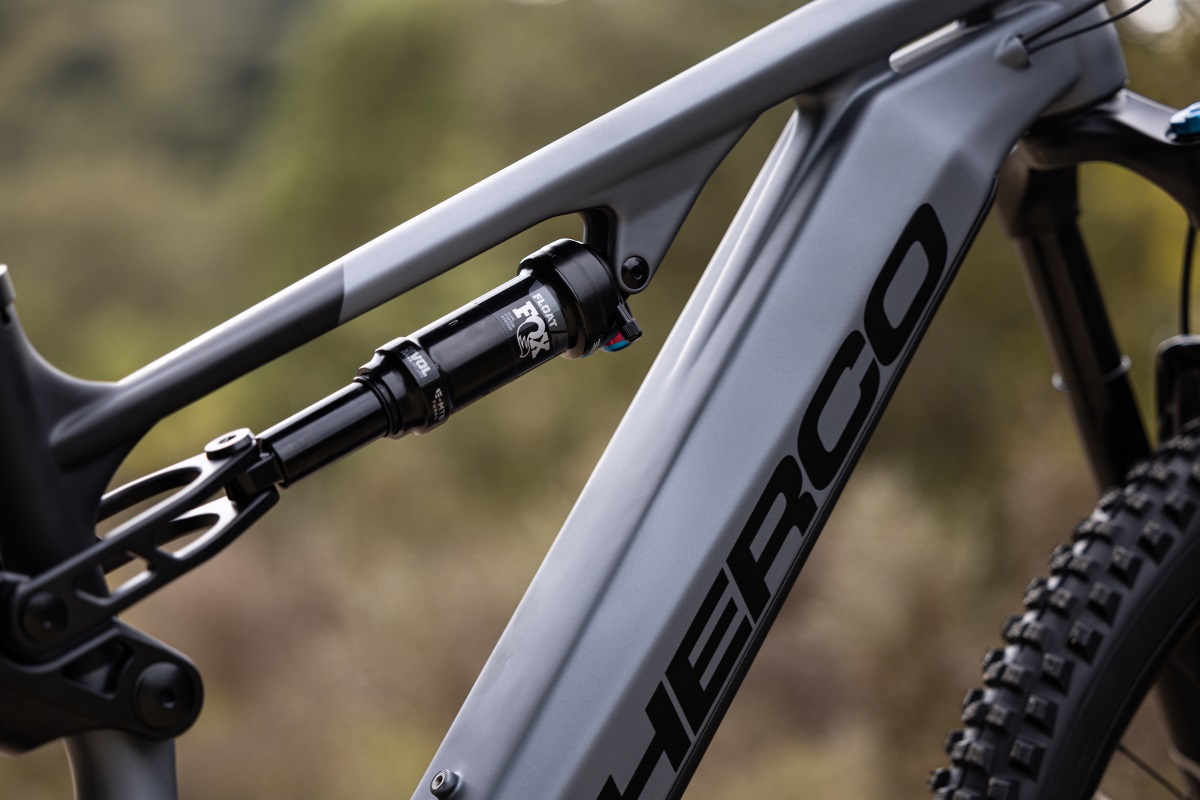

| Shock: | FOX Float DPS P-S A 3 positions, 210 x 52.5mm
|
| Brakes: | SHIMANO MT420 hydraulic disc 4-piston calipers, SLX Ø 203mm centre lock discs
|

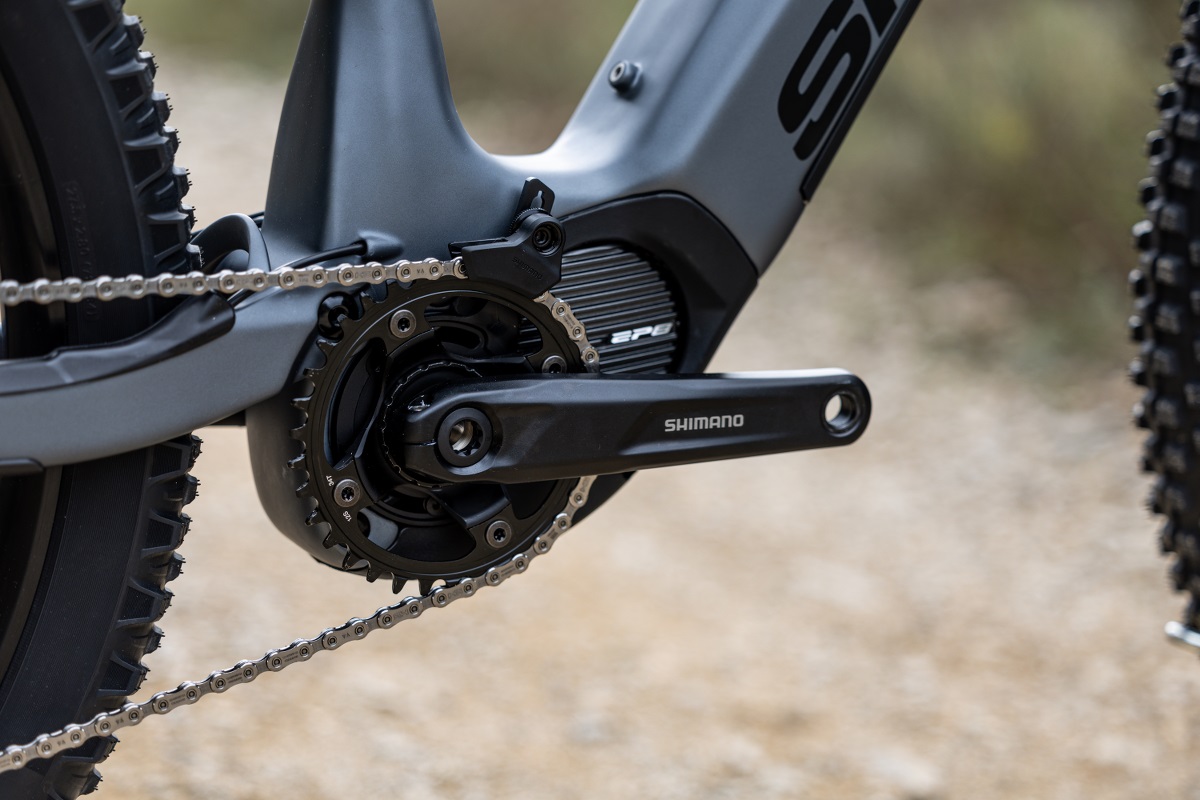

| Motor: | SHIMANO EP08 / 85 Nm
|
| Battery: | SHIMANO Integrated Li-ion battery 630Wh, BT-E8036
|

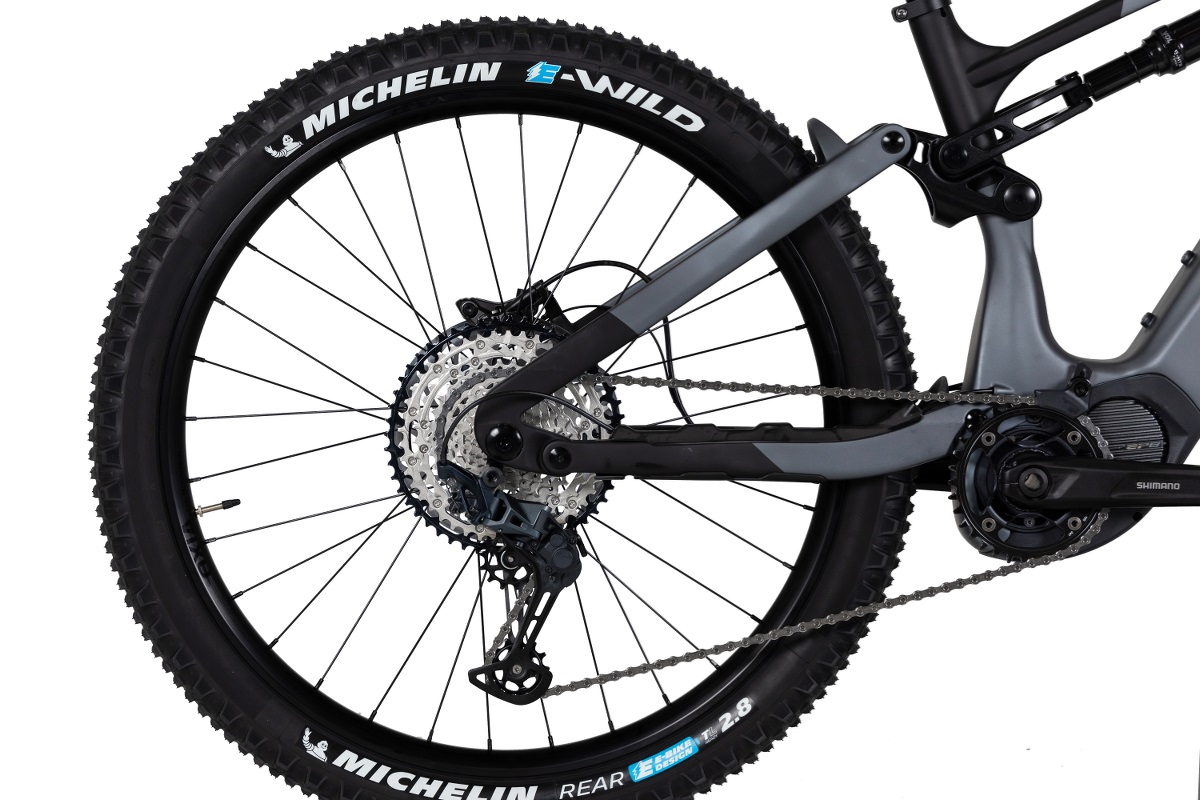

| Wheels: | 29’’ front / 27.5’’ rear, Novatec hub, OXIA rims
|
| Tyres: | Michelin 29 x 2.60 Wild AM2 competition line TS TLR (front), Michelin 27.5 x 2.80 E-Wild rear GUM-X TS TLR (rear)
|
| Crank: | SHIMANO FC-EM600, 170mm
|
| Chain: | SHIMANO DEORE M610, 12-speed
|

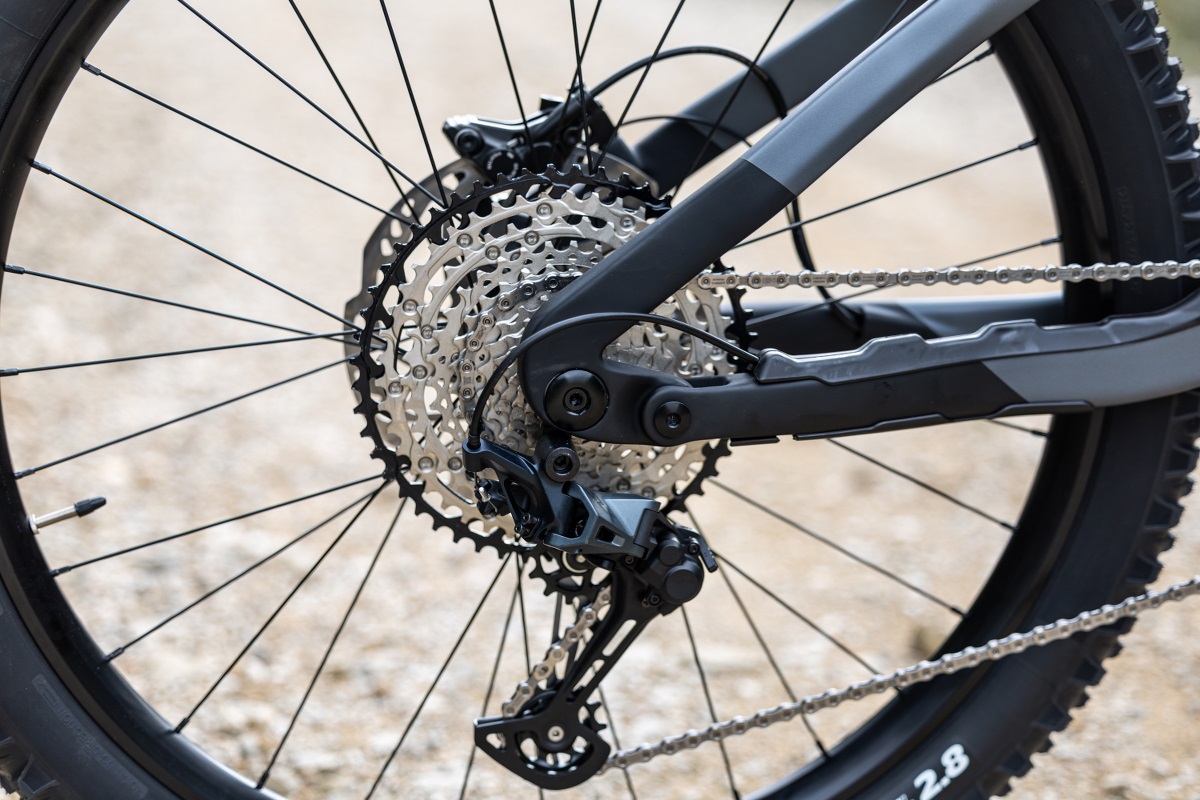

| Cassette: | SHIMANO SLX 12V RD-M7100-12
|
| Rear Derailleur: | SHIMANO SLX 12V RD-M7100
|

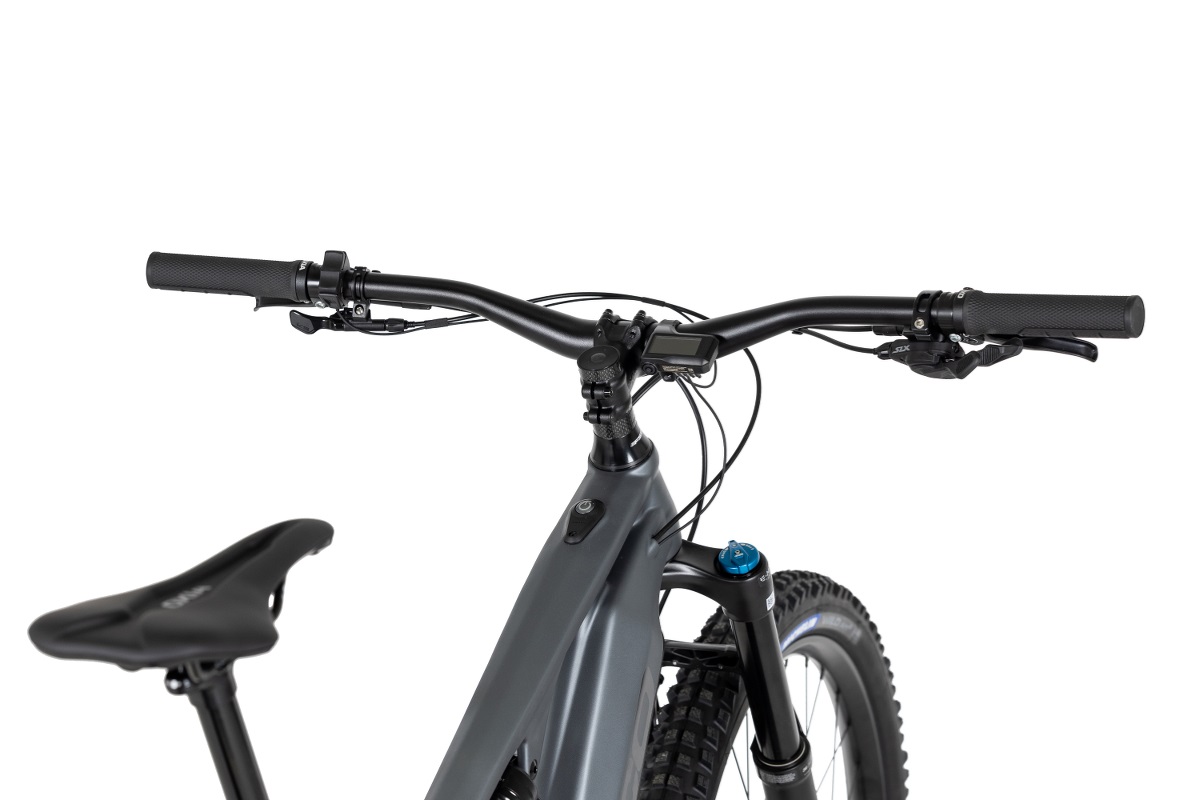

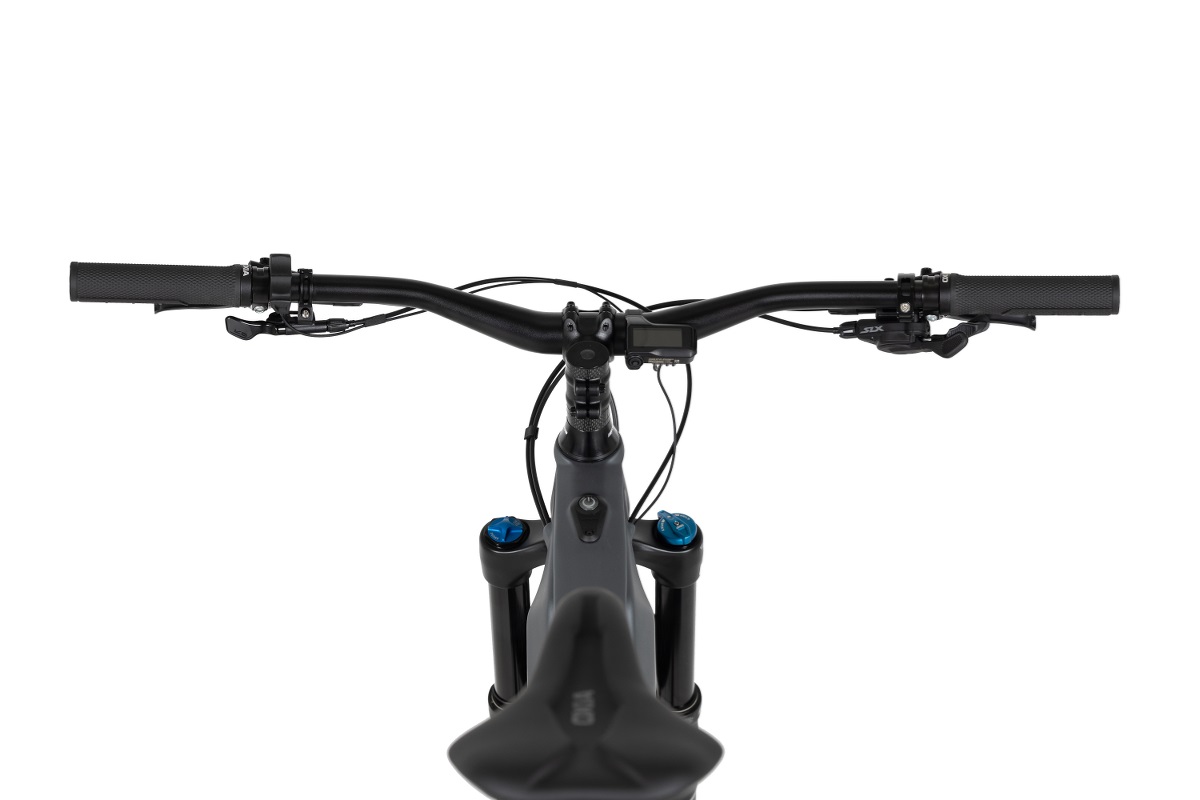

| Handlebar: | OXIA aluminium 35mm, 800mm width, 30 / 6 / 8
|

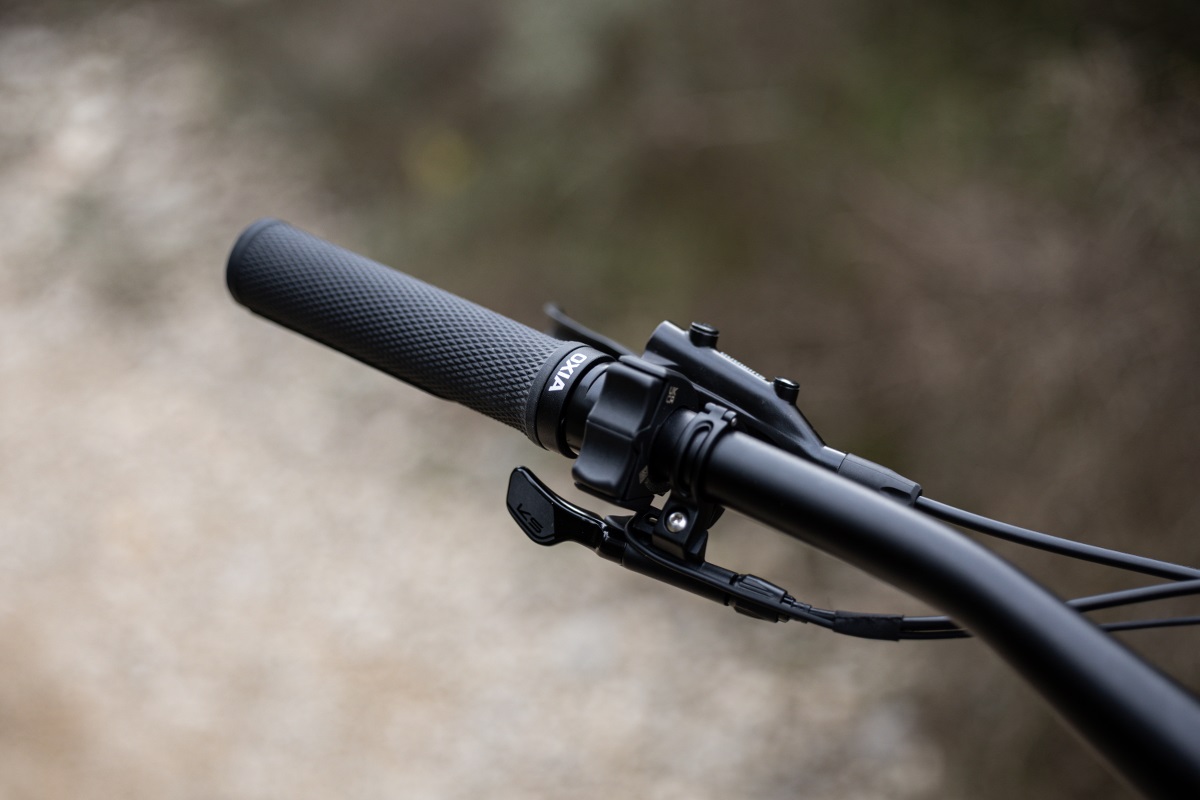

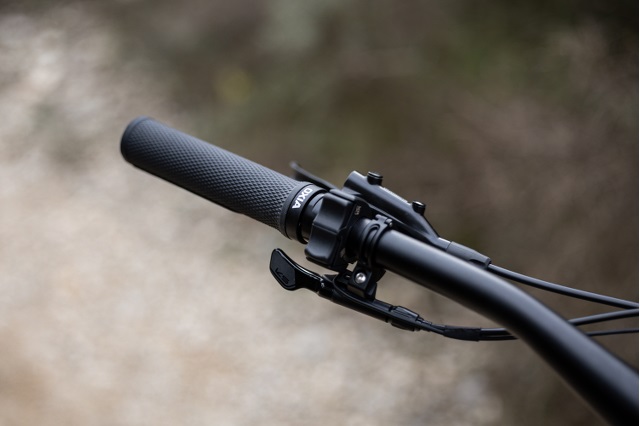

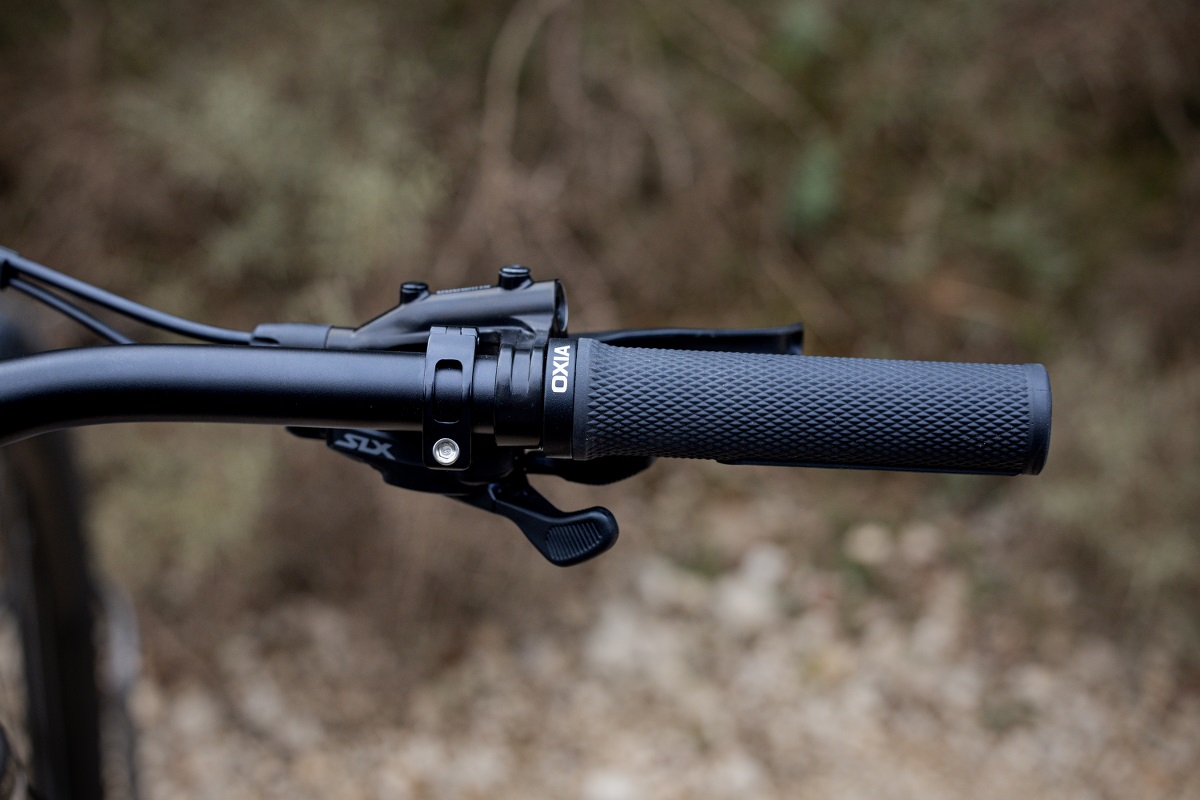

| Grips: | OXIA Lockon
|
| Stem: | OXIA aluminium S-M: 55mm / L-XL: 65mm
|
| Shifter: | SHIMANO SLX 12V SL-M7100-IR
|

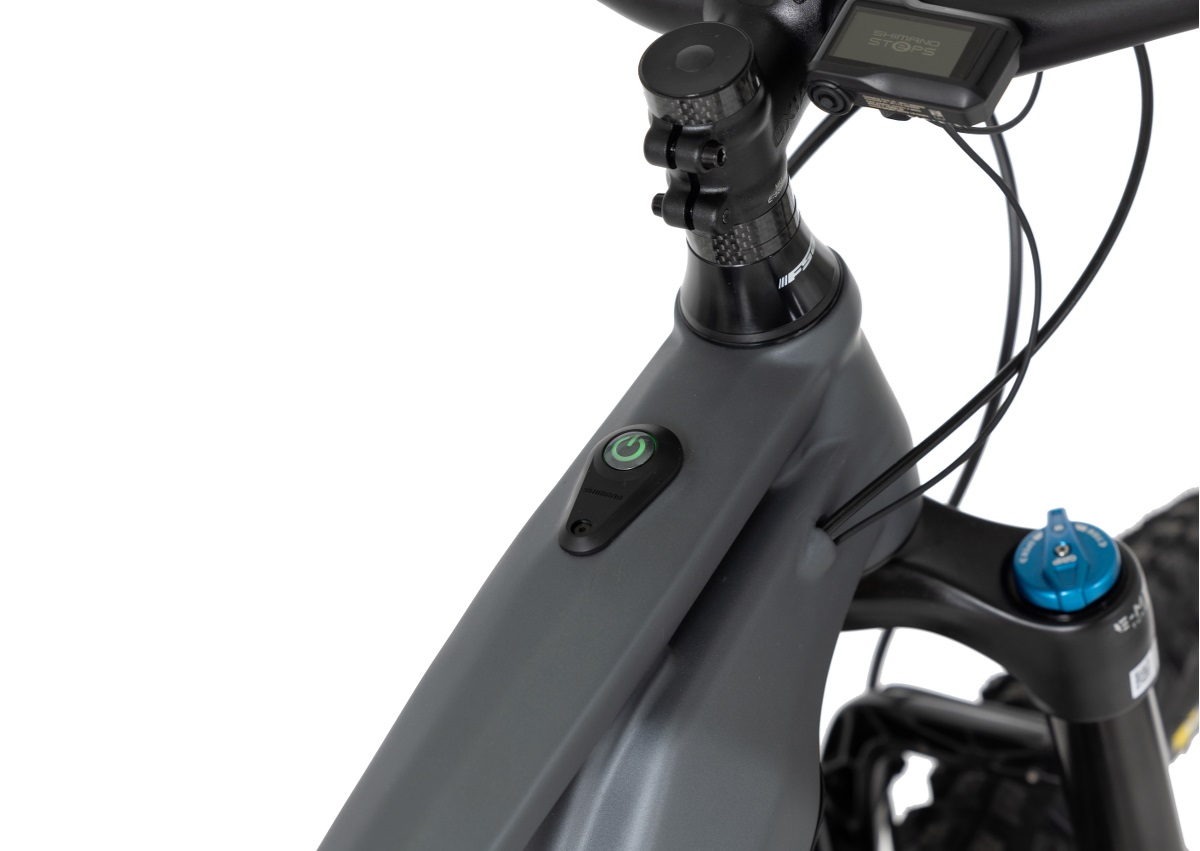

| Screen: | SHIMANO SC-EM800
|

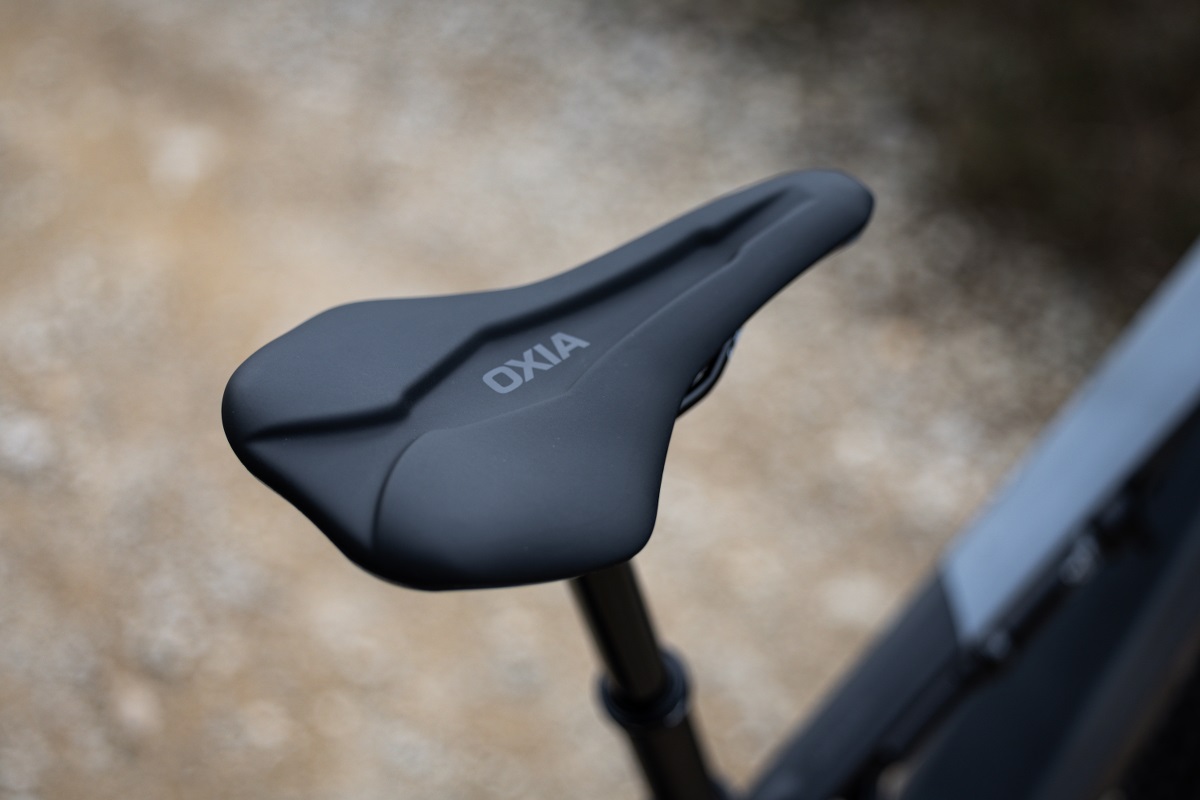

| Seat: | OXIA with Cr-Mo Rails
|
| Seat Post: | KS Dropout seat post, rage-I S: 125mm / M: 150mm / L-XL: 170mm
|
| Weight: | 23.5kg
|
| Frame Size: | S, M, L, XL |
